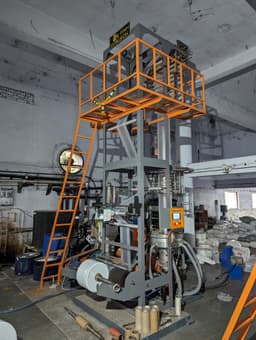

Mono Layer
The Mono Layer extrusion machine is an economical solution for producing high-clarity films with consistent thickness and superior optical properties. Engineered for reliability, this machine ensures uniform film formation, making it ideal for cost-sensitive applications without compromising on quality. Its durable construction and user-friendly operation make it an excellent choice for businesses looking to optimize production efficiency. The Mono Layer extrusion process is suitable for a wide range of applications, including food packaging, agriculture films, lamination films, and shopping bags.
Key Features:
- Durable construction for long-lasting operation
- Cost-efficient production with minimal material waste
- High clarity and optical properties for premium film quality
- Applications: Food Packaging, Agriculture Films, Lamination Films, Shopping Bags
Technical Specifications
| Specification | 35mm | 40mm | 45mm | 55mm | 65mm | 75mm |
|---|---|---|---|---|---|---|
| Main Motor (KW) | 5.5kw | 7.5kw | 11kw | 18.5kw | 29.5kw | 37kw |
| Output (max) | 30kg | 40kg | 45kg | 70kg | 100kg | 130kg |
| Die Size (LLDPE) | 100mm | 125mm | 150mm | 250mm | 300mm | 350mm |
| Thickness Gauge | 20 to 100 micron | 20 to 120 micron | 20 to 140 micron | 20 to 160 micron | 20 to 200 micron | |
| Nip Size | 600mm | 650mm | 800mm | 1050mm | 1270mm | 1500mm |
| Layflat | 550mm | 600mm | 750mm | 1000mm | 1200mm | 1450mm |
