Two Layer
Thumbnail 1Thumbnail 2Thumbnail 3

Two Layer

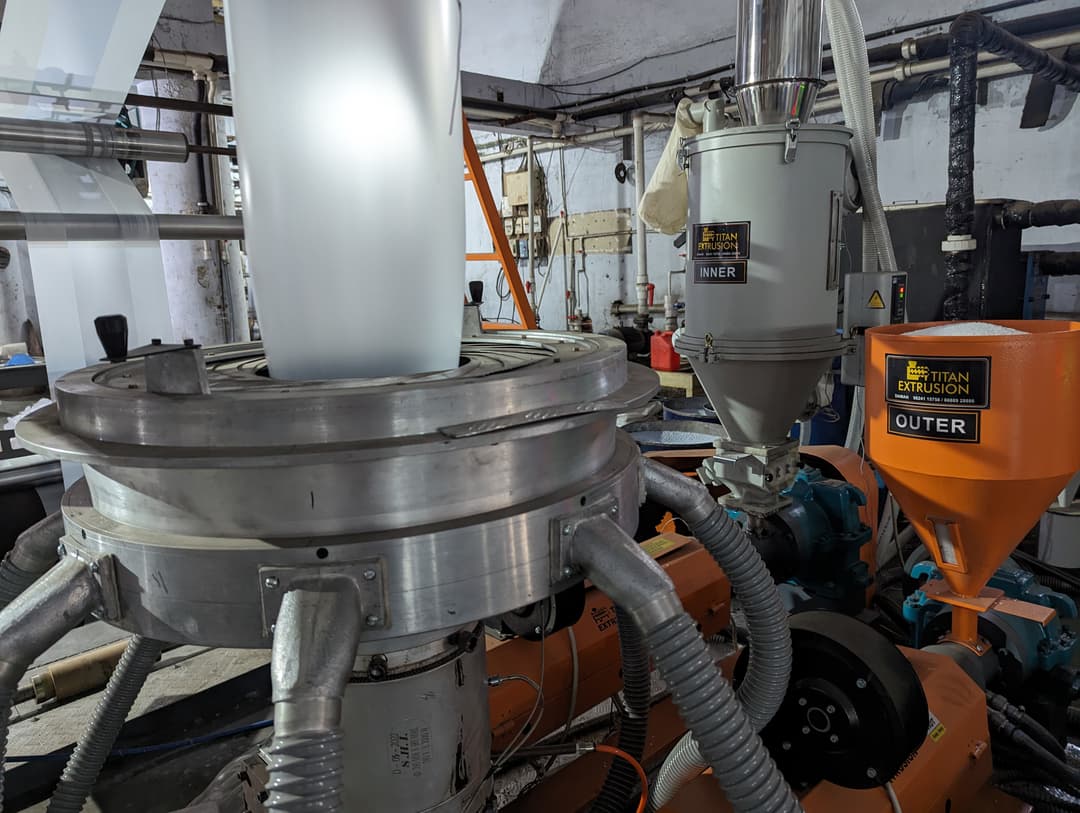

The Two Layer extrusion machine is designed for enhanced film strength and flexibility by allowing the co-extrusion of different polymer layers. This technology improves heat-sealing properties and mechanical durability, making it an excellent choice for flexible packaging solutions. With the ability to combine materials with different characteristics, manufacturers can achieve customized film performance to meet specific industry requirements. It is widely used in applications such as shrink wraps, industrial liners, and barrier films, where enhanced durability and sealing properties are essential.

Key Features:

  • Enhanced film strength and mechanical durability
  • Flexible material combinations for tailored performance
  • Improved heat-sealing performance for secure packaging
  • Applications: Flexible Packaging, Shrink Wraps, Industrial Liners, Barrier Films

Technical Specifications

Specification40mm-40mm45mm-45mm50mm-50mm
Inner Screw Dia (mm)40mm45mm55mm
Outer Screw Dia (mm)40mm45mm55mm
Inner Main Motor (kw)7.5kw11kw18kw
Outer Main Motor (kw)7.5kw11kw18kw
Die Size75mm HM 150mm LLDPE100mm HM 200mm LLDPE125mm HM 250mm LLDPE
Thickness Gauge10 to 100 micron HM, 20 to 150 micron LLDPE15 to 125 micron HM, 25 to 200 micron LLDPE20 to 150 micron HM, 25 to 250 micron LLDPE
Nip Size810mm1050mm1250mm
Layflat800mm1000mm1200mm
